Aluminium Pergola System

Transform your outdoor spaces into year-round living areas with Greenix Aluminium Pergola. Engineered for modern villas, luxury resorts, hotels and high-end residential projects, our pergola system seamlessly blends structural durability with elegant aesthetics.

Whether you’re creating a tranquil retreat or a vibrant entertainment area, our motorized pergola with edge lighting is an ideal choice. Greenix offers high-quality aluminium louvered pergola kits that are straightforward to assemble and built to last.

Key Features

Top Quality extruded aluminum alloy material with construction grade.

High-strength 6063-T5 aluminium alloy frame with electrostatic powder coating finish.
Resistant to rust, corrosion, and UV fading, ideal for coastal and windy area.
Structural integrity supports heavy snow loads and high wind pressures.

Smart Adjustable Louvred Roof (0°- 135°)

Motorised rotating louvres allow infinite angle adjustment.
Seamlessly switch from full shade to gentle filtered light to open sky view.
Integrated rain sensors (optional) automatically close the louvres when rainfall is detected.

Integrated Drainage System

Hidden internal gutters and tubes channel rainwater efficiently.
Prevents water pooling and ensures a dry, usable space even during downpours.

Zipped blind/Glass door/Side Shutter (Optional Add-on)

Add Zipped blinds, or sliding glass doors or side shutters in the pergola to create a fully enclosed sunroom.
Enjoy unobstructed views while maintaining thermal insulation and wind protection.

Smart Home Ready

Pre-wired conduits for LED strip lighting, heating lamps, and audio systems.
Compatible with remote control, and smartphone APP (Wi-Fi/Bluetooth).

Technical Specifications

Pergola Technical Specification	210mm pergola 3.0 thickness	210mm pergola 2.0 thickness	170mm pergola 1.6 thickness
Largest span	4500mm	4000mm	3500mm
Maximum length	6000mm	5000mm	5000mm
Post dimension	652003.0mm	452102.0mm	301701.6mm
Column dimension	1501503.0mm	1501502.0mm	1201201.6mm
Opening angle	135°	135°	90°- 120°
Surface treatment	Outdoor powder coating	Outdoor powder coating	Outdoor powder coating
Motor power	24V 800N 30W	24V 800N 30W	24V 800N 30W
Drive way	electric	electric	Mannual/electric

Pergola Technical Specification	210mm pergola 3.0 thickness
Largest span	4500mm
Maximum length	6000mm
Post dimension	652003.0mm
Column dimension	1501503.0mm
Opening angle	135°
Surface treatment	Outdoor powder coating
Motor power	24V 800N 30W
Drive way	electric

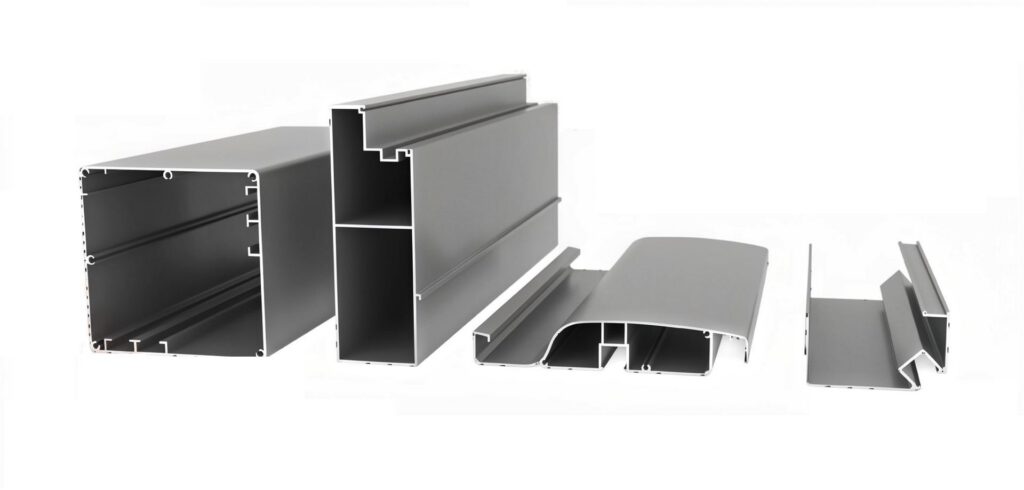

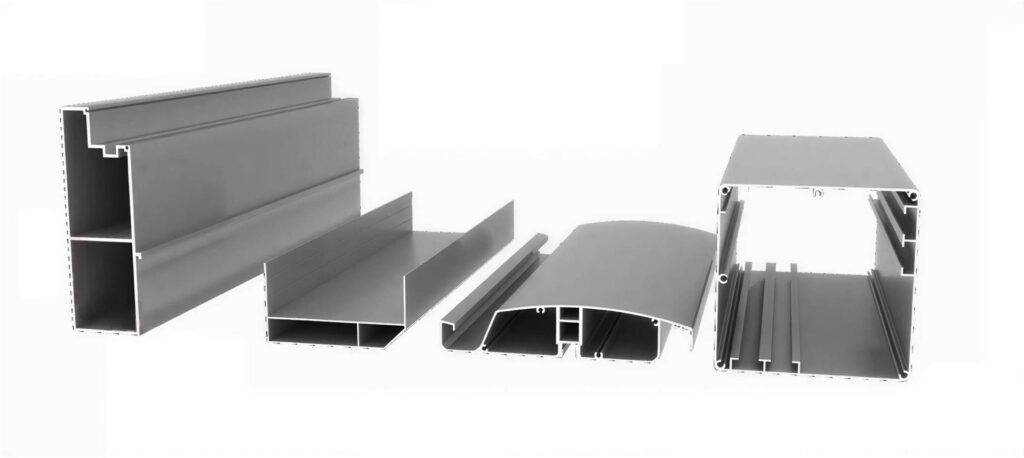

210mm pergola 3.0 thickness

Pergola Technical Specification	210mm pergola 3.0 thickness
Largest span	4500mm
Maximum length	6000mm
Post dimension	652003.0mm
Column dimension	1501503.0mm
Opening angle	135°
Surface treatment	Outdoor powder coating
Motor power	24V 800N 30W
Drive way	electric

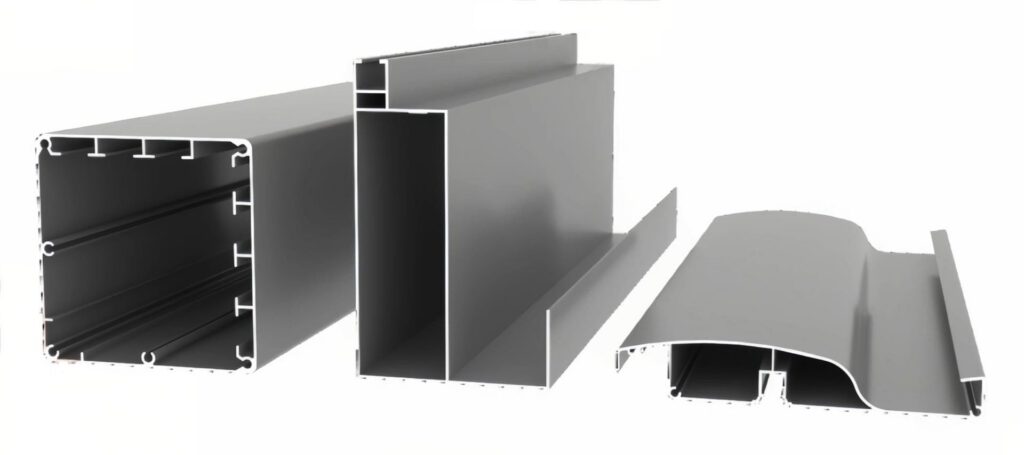

170mm pergola 1.6 thickness

Pergola Technical Specification	210mm pergola 3.0 thickness
Largest span	4500mm
Maximum length	6000mm
Post dimension	652003.0mm
Column dimension	1501503.0mm
Opening angle	135°
Surface treatment	Outdoor powder coating
Motor power	24V 800N 30W
Drive way	electric

210mm pergola 2.0 thickness

Customization Options

At Greenix, every project is unique. We offer full customization to match your architectural requirements:

Colours

Choose from our standard RAL palette (e.g., RAL 9006, RAL 7016, RAL 9010) or provide your own colour sample.

Side Screens

Optional drop-arm side blinds or vertical glass slats for privacy and wind protection.

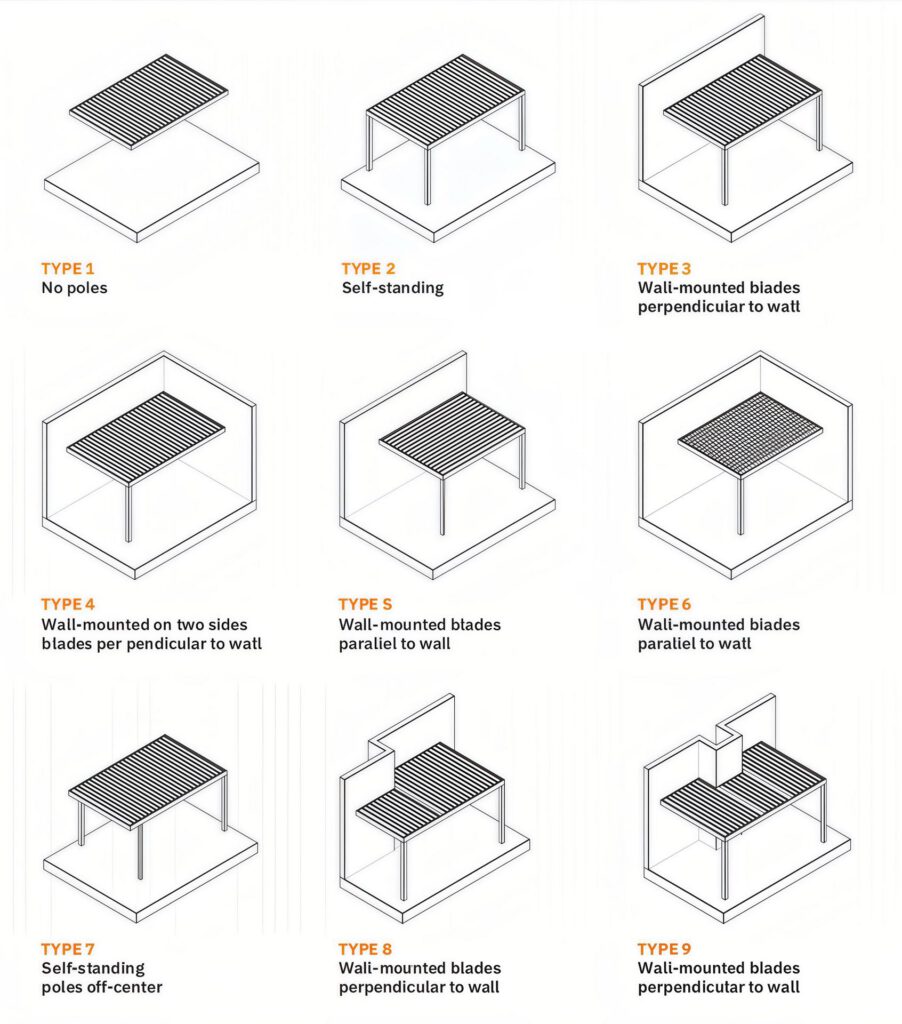

Mounting Styles

Wall-mounted, self-standing, or suspended from existing structures.

Dimensions

Any length, width, and height tailored to your site.

Customization

Applications

Luxury Villas & Private Residences

- Perfect for patios, poolside cabanas, and garden lounges.

Commercial Hospitality

- Outdoor restaurants, hotel entrances, and rooftop bars.

Public Spaces

- Walkways, shopping malls, and community leisure zones.

Retrofitting Projects

- Easily installed onto existing terraces and balconies.

Why Choose Greenix for Your Pergola Project?

10+ Years Export Expertise

– Proven track record in shipping large-scale aluminium structures worldwide with safe packaging and professional logistics support.

Integrated Engineering Support

– Detailed 2D/3D CAD drawings, structural calculations, and step-by-step installation manuals.

Rigorous Quality Control

– Every pergola undergoes a 3-stage inspection (material, pre-assembly, and packing) to ensure zero defects upon arrival.

Competitive Factory Pricing

– Direct sourcing from our automated production lines means premium quality without the premium markup.

Full After-Sales Support

– 24/7 technical hotline, spare parts availability, and dedicated project managers for your order.

How It Works – 3 Simple Steps

1

Inquiry & Design Consultation

– Share your project requirements, dimensions, and design preferences.

2

Drawing & Quotation

– Our engineers propose a tailored solution with a detailed quotation within 48 hours.

3

Production & Delivery

– Production followed by professional packaging and freight delivery to your destination.

Get a Quick Quote Today

Ready to start your project?
Contact the Greenix Tech team now for a competitive quotation and a free design proposal.

[email protected]

+0086-15015632138

WhatsApp/WeChat
